From CAD designs to castable resin models, NOVA3D supports the digital production of microlay, filigree, openwork and thick-walled jewelry models through LCD stereolithography 3D printing equipment, jewelry casting resins, NovaStudio slicing and printing workflow software and post-processing processes.
What are jewelry casting 3D printing applications?
Jewelry casting 3D printing application refers to the use of LCD light-curing 3D printing technology to produce jewelry resin models, combined with ultrasonic cleaning machines, post-curing, sintering and lost-wax casting processes, to gradually transform digital designs into physical models that can be used for process evaluation or subsequent casting. NOVA3D targets jewelry design studios, manufacturing companies and casting centers, providing printing equipment, jewelry resin, NovaStudio slicing and printing workflow software and post-processing process recommendations.
Jewelry application scenarios

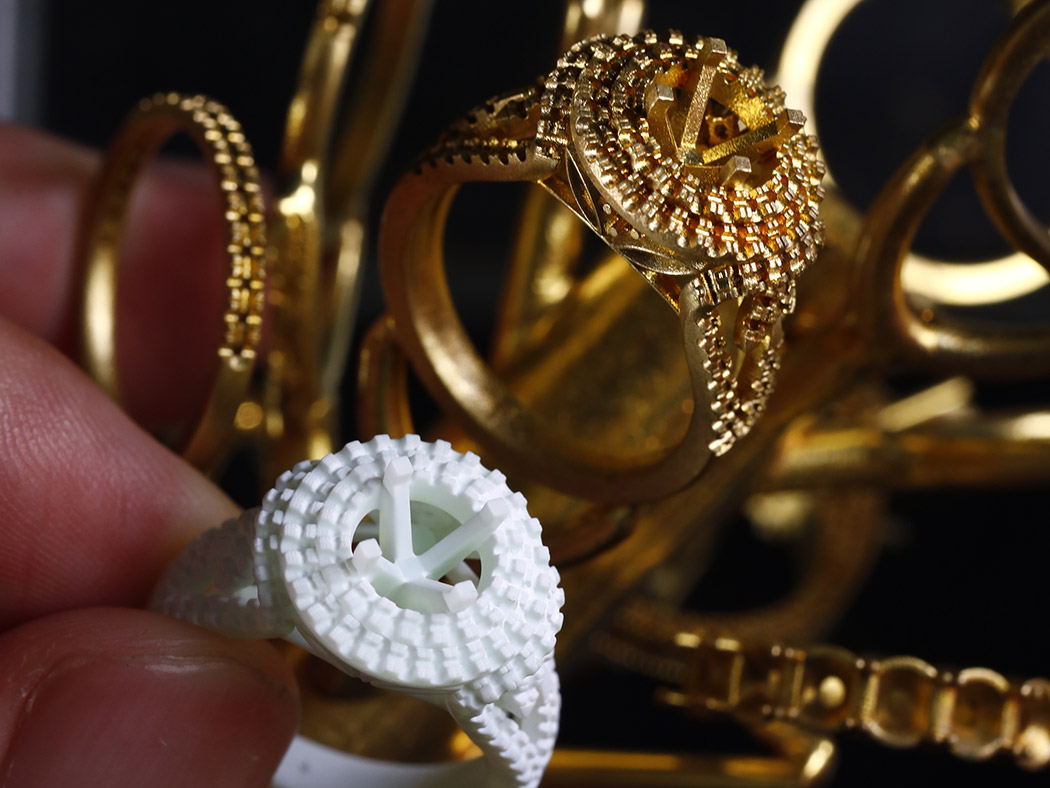

Micro setting ring
Micro-set rings usually contain multiple small openings, prongs and hollow structures, which require higher model details, support settings and post-processing processes. Through GEM3 Max and jewelry casting resin, users can create resin models for design verification, setting observation and pre-lost wax casting evaluation.
Recommended products:
GEM3 MAXPrecision Cast Resin
Applicable structures:
Micro-studs, four-claw/six-claw setting, small row of nails, hollow shell, light and thin curved parts

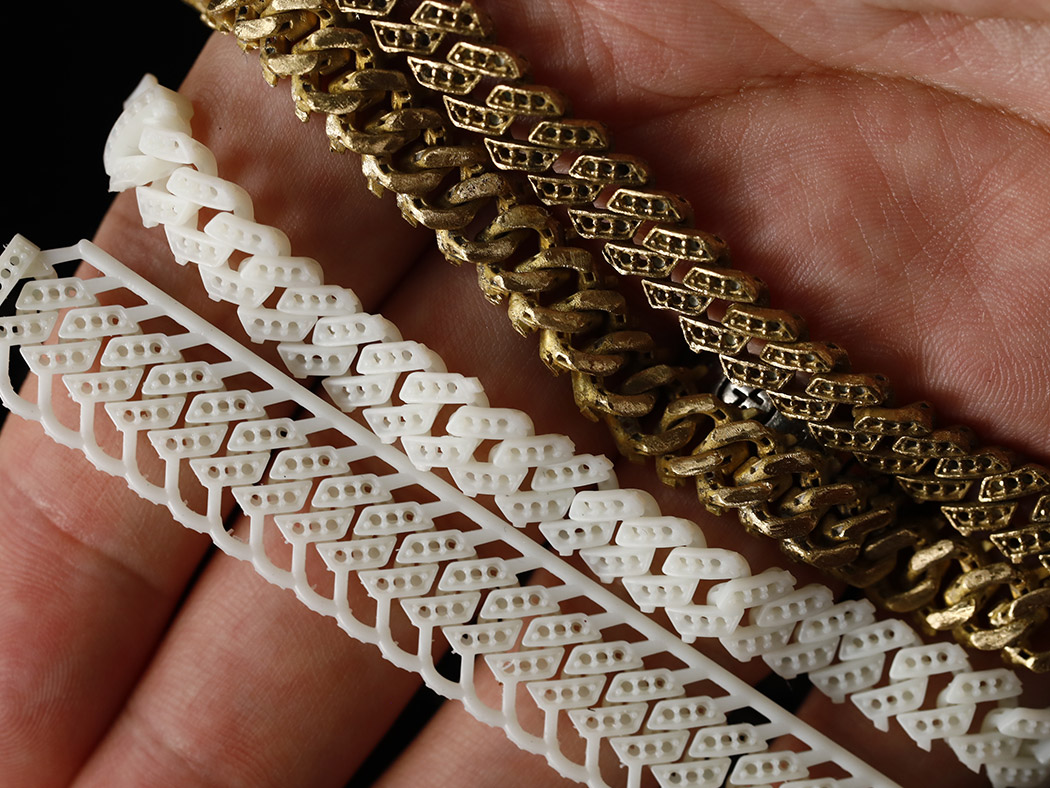

cuban bracelet
Cuban bracelets are composed of multiple links and buckle structures. The links are closely connected and the fasteners are movable. This requires the model to have high strength and toughness while taking into account the details. Through GEM3 Max and Precision Cast Resin, a complete chain link model can be produced for connection testing, fastening verification and pre-lost wax casting evaluation.
Recommended products:
GEM3 MAXPrecision Cast Resin
Applicable structures:
Chain links, fasteners, connecting rings, movable buckles, buckles between sections, closing parts

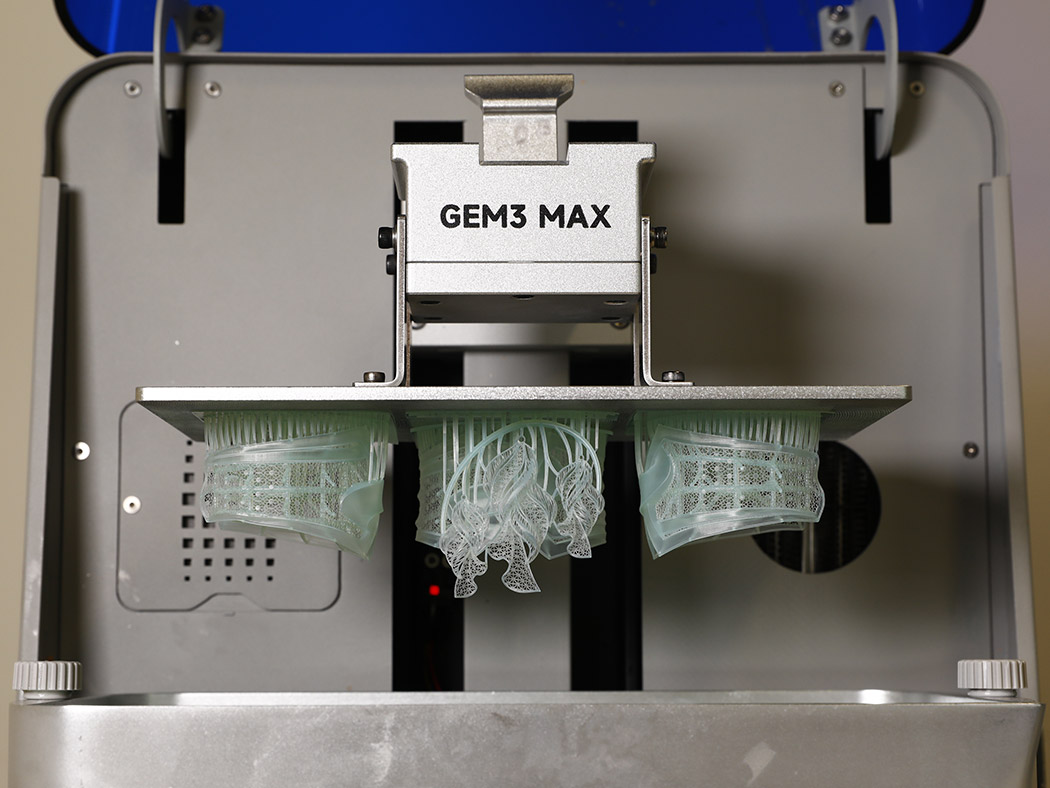

filigree bracelet
The filigree bracelet is composed of filaments, hollows and rolled edges. The structure is fine and ash is easy to remain in the hollow parts during the sintering process. It requires high requirements for the clarity of the model's hollows and support settings. Using GEM3 Max and filigree casting resin, a filigree bracelet resin model can be made for filigree design evaluation, hollow burnability verification, and pre-lost wax casting evaluation.

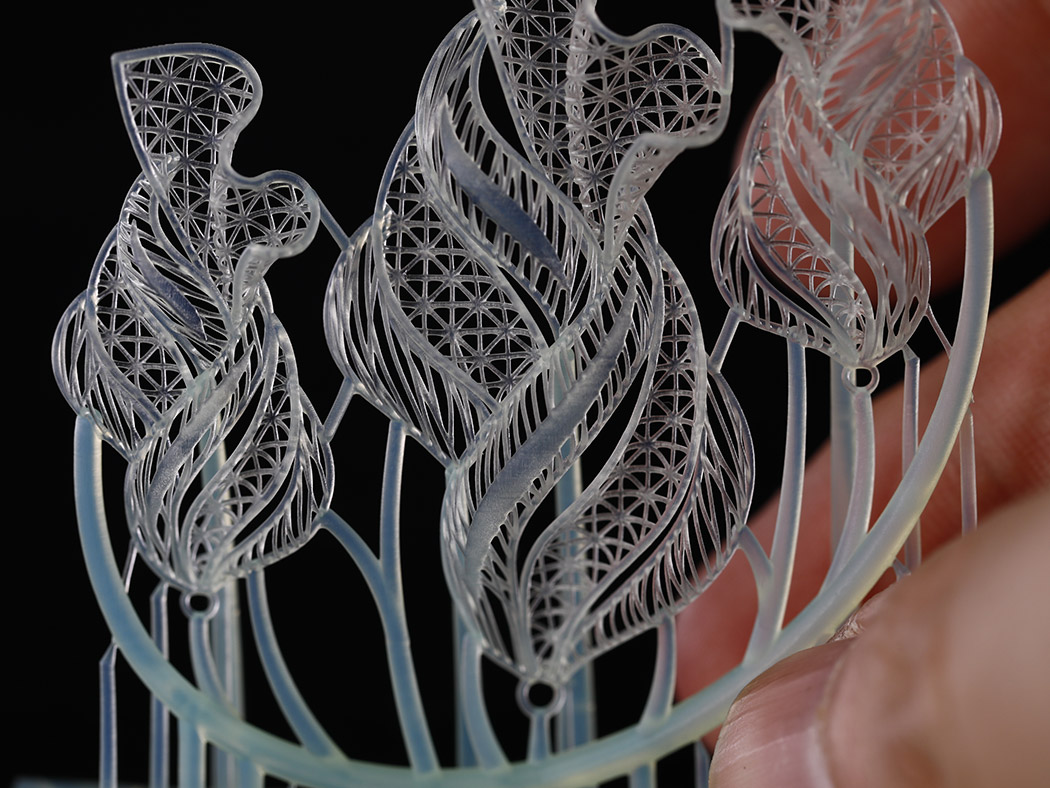

The filigree pendant contains filaments, hollows and pendant structures. The whole is fine and ash is easy to remain in the hollow parts during the sintering process. It requires high requirements for the filament performance of the model and the clarity of the hollow parts. Through GEM3 Max and filigree casting resin, filigree pendant resin models can be made for filigree design evaluation, hollow burnability verification and pre-lost wax casting evaluation.

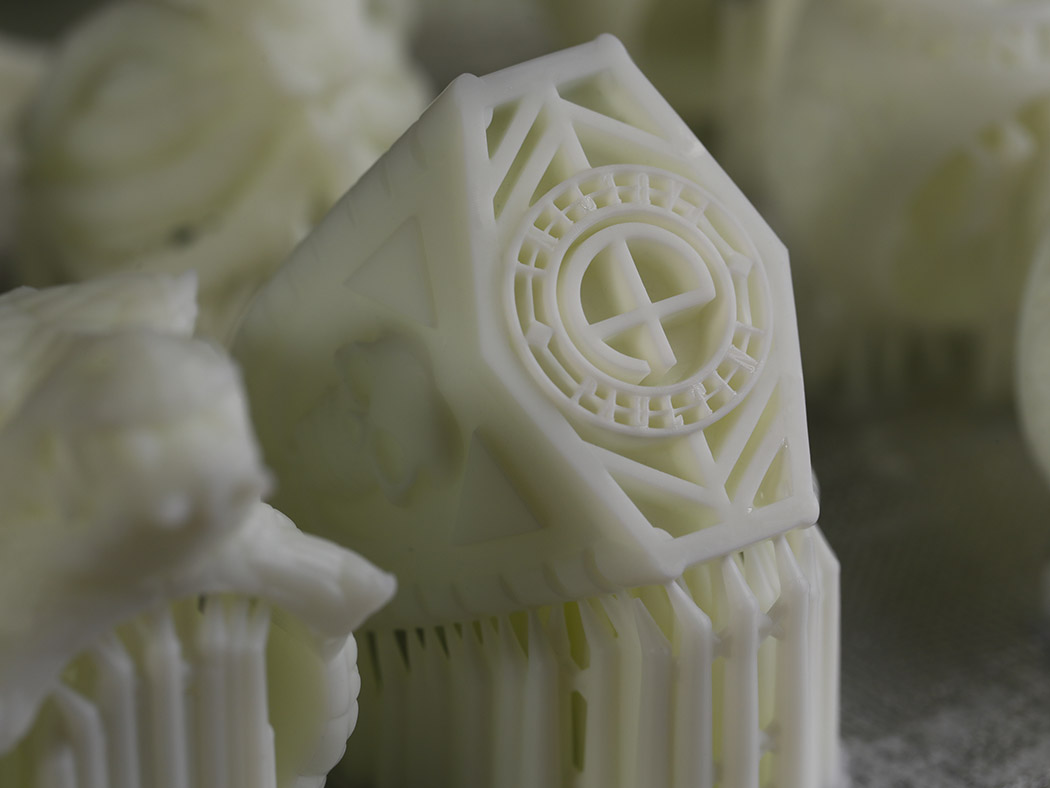

The overall wall thickness of the men's thick ring is relatively large. Thick-walled structures are prone to uneven curing and incomplete combustion during the printing and sintering processes. The requirements for model wall thickness uniformity and smooth combustion are relatively high. Through GEM3 Max and High wax thick casting resin, thick-ring resin models can be produced for structural verification, dimensional evaluation and pre-lost wax casting evaluation.
The relief Buddha amulet contains three-dimensional relief patterns, shading and buckle structures. The relief details are required to be high and the overall wall thickness is uneven. The requirements for model details and smooth burning are high. Using GEM3 Max and High wax thick casting resin, a resin model of the relief Buddha amulet can be produced for relief design evaluation, thickness verification and pre-lost wax casting evaluation.
Pain points of traditional jewelry creation and NOVA3D solution
Traditional Jewelry Model-Making Challenges
Long Lead TimeHand-carved wax models take time, and complex design revisions are costly.
Process LimitationsMicro-pavé, filigree and hollow structures are difficult to produce.
Casting Residue RiskUnstable burnout of ordinary resin may affect casting results.
High CostSmall batches and customized production can be expensive.
NOVA3D Solution
Digital PrototypingOnce the CAD design is complete, resin models can be printed quickly for design validation and pre-casting evaluation.
Complex Detail ProductionLCD printing and suitable resin parameters help reproduce settings, filigree, textures and hollow structures.
Material-Matched BurnoutCasting resin, cleaning, post-curing and a recommended burnout schedule improve compatibility with lost-wax casting.
Flexible Small BatchesNo traditional mold-making is required, supporting one-off prints, small-batch validation and customized jewelry models.
NOVA3D jewelry casting application value

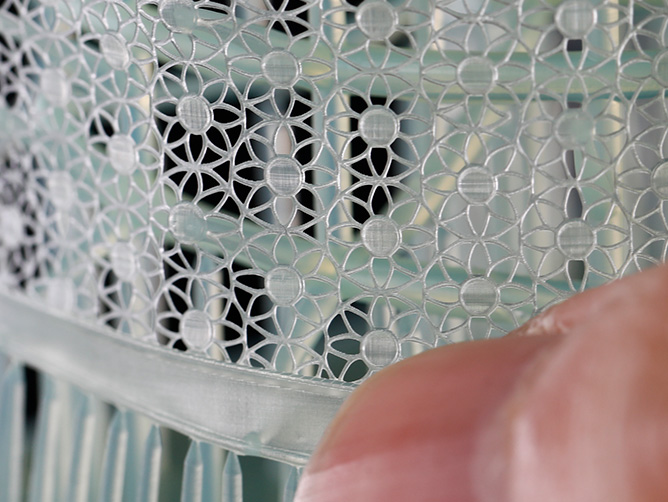

Complex jewelry structure model production
It is suitable for resin model printing of jewelry structures such as micro-setting, filigree, hollow, relief and complex curved surfaces, helping designers to see local details and overall proportions.

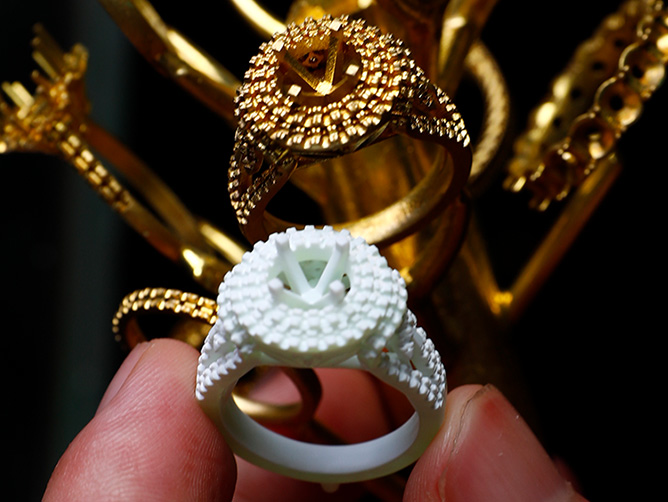

Castable resin model making
Combines jewelry casting resin, ultrasonic cleaning, post-curing and sintering processes for resin model making and process evaluation before lost wax casting.

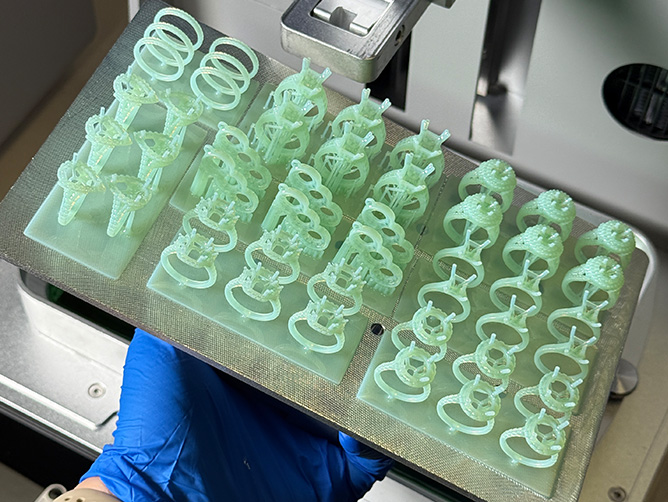

Design verification and low-volume model production
Supports new product design verification, multi-version comparison, one-piece printing and small-batch resin model production, reducing reliance on traditional manual wax-making processes.
From digital design to fine jewelry, build a complete digital jewelry manufacturing process
NOVA3D integrates high-precision light-curing 3D printing technology into the entire jewelry manufacturing process, from CAD design and model printing to lost wax casting and finished product processing, helping jewelry companies improve model production efficiency, detail expression and production process consistency, and achieve more flexible digital production.

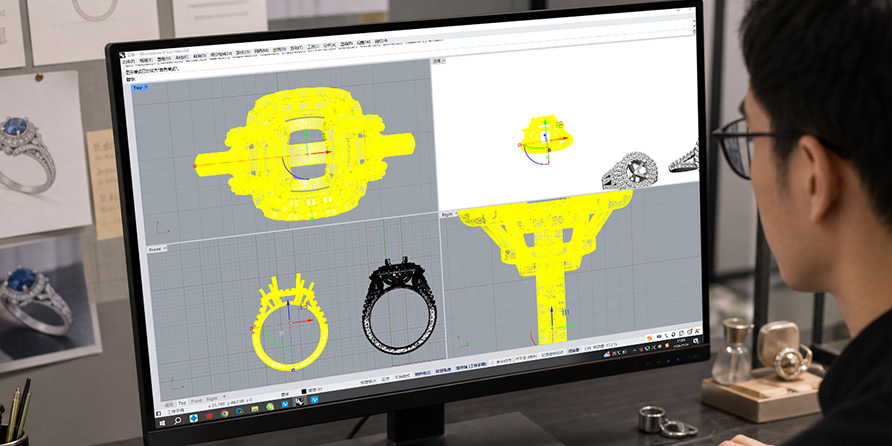

CAD design
Use professional jewelry CAD software to complete the model design of rings, pendants, earrings, bracelets, etc., and establish a digital model foundation. NOVA3D Support: Pre-Jewelry Modeling Checklist and Printing Design Suggestions

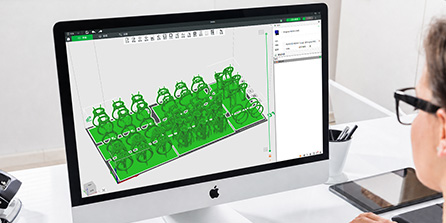

Model layout and slicing
Complete model import, angle adjustment, support settings, typesetting, print detection and slice preview in NovaStudio. NOVA3D support: NovaStudio slicing and printing workflow software

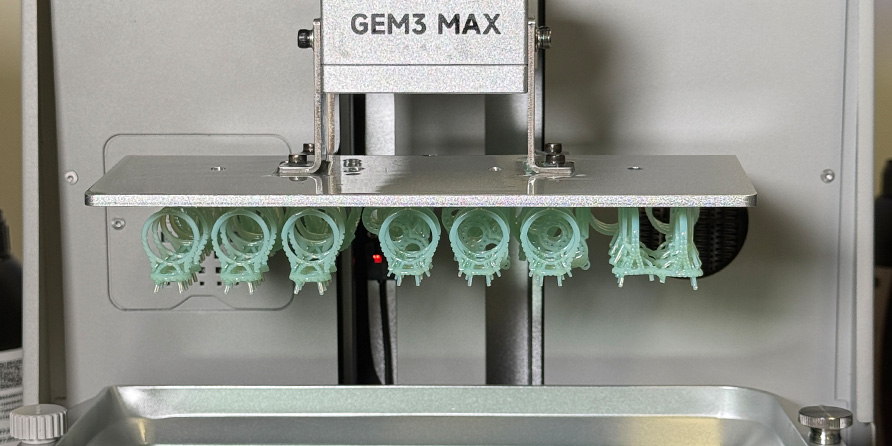

Send the slice files to the device to create jewelry resin models using an LCD stereolithography 3D printer like the GEM3 Max. NOVA3D supports: GEM3 Max jewelry 3D printer

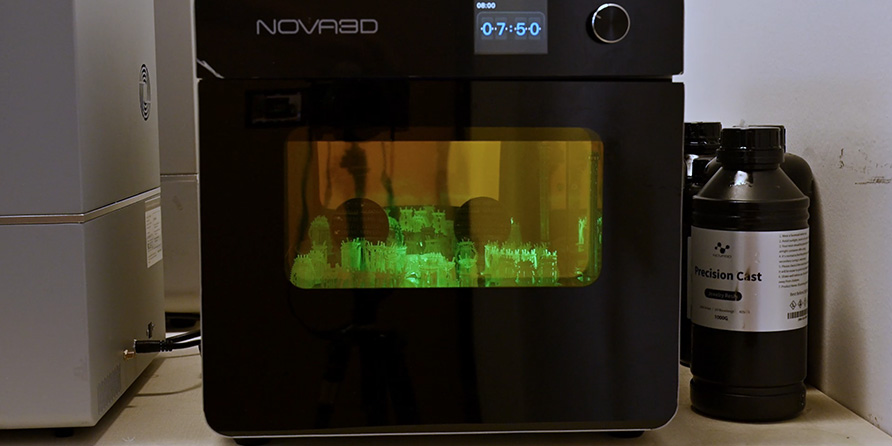

Complete the ultrasonic cleaning, drying and secondary curing of the model according to the material instructions to ensure that the model is in a stable state before entering subsequent processes. NOVA3D support: FastCure3 post-curing equipment and post-processing guide

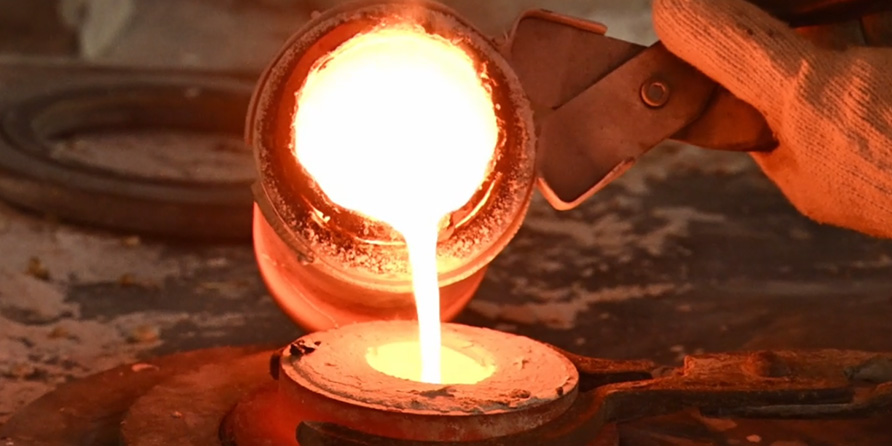

Sintering and casting
According to the resin material recommendations and the enterprise's casting process, the work processes such as embedding, sintering, dewaxing and casting are completed. NOVA3D Support: Jewelry Casting Resin Sintering Curves and Application Guide

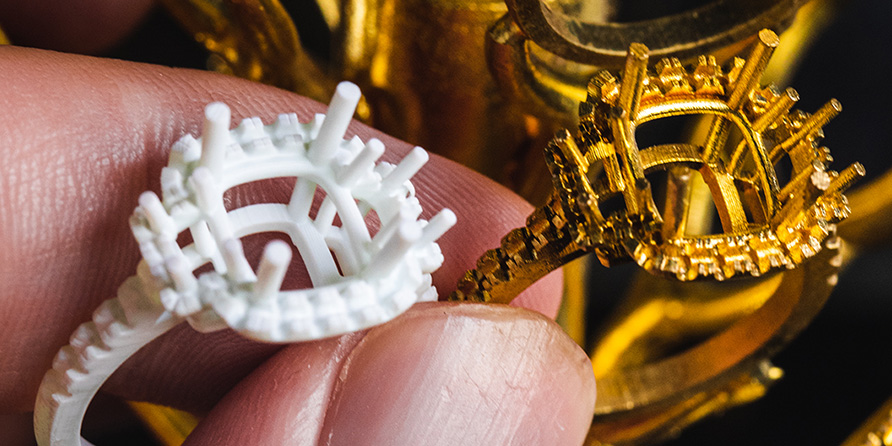

Finished product processing
Complete the grinding, polishing, inlaying and surface treatment processes after casting. Application cases and finished product process reference
Build a complete jewelry digital production ecosystem
From printing equipment, jewelry resin, NovaStudio slicing and printing workflow software to ultrasonic cleaning, post-curing and process guidance, NOVA3D helps jewelry users establish a complete workflow from model preparation to pre-casting processing.

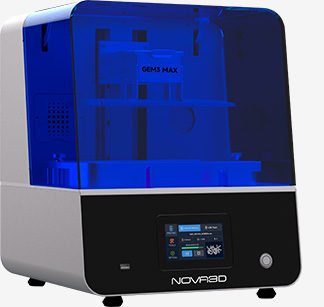

GEM3 Max
Recommended for batch typesetting and high-detail printing of jewelry resin models.
For model preparation, supports, slicing, preview and file transfer.
NovaHandy Mobile App
NovaCloud cloud platform
Material Selection Guide
jewelry applicationsRecommended resinReasons for recommendation
jewelry applicationsMicro setting ringRecommended resinPrecision Cast ResinReasons for recommendationSuitable for small claws, inlays and high-detail structural models.
jewelry applicationsFiligree/Hollow StructureRecommended resinfiligree casting resinReasons for recommendationSuitable for thin, complex and hollow geometric structure models.
jewelry applicationsTraditional wax molding processRecommended resinHigh wax thick casting resinReasons for recommendationSuitable for jewelry models with thick-walled structures and traditional wax molding experience.
jewelry applicationsBulk Ring TreeRecommended resinExquisite precision casting resin / high wax thick casting resinReasons for recommendationSelect based on detail requirements, model thickness and casting process.
jewelry applicationspendants/earringsRecommended resinPrecision Cast Resin/filigree casting resinReasons for recommendationChoose based on detail complexity and structural thickness.

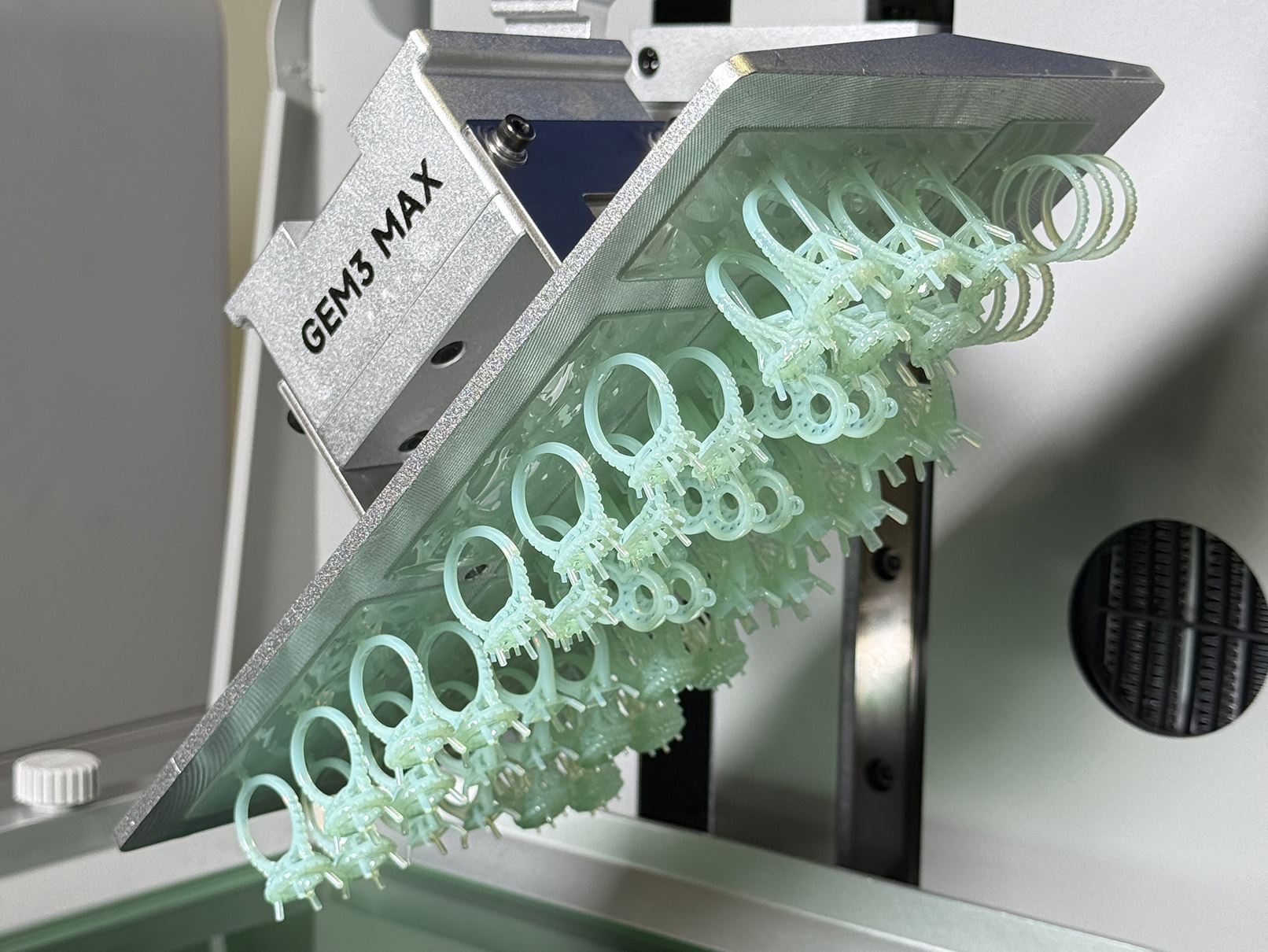

High-precision jewelry printing sample display
From micro-embedded rings, filigree structures to complex hollow models, demonstrate NOVA3D’s detailed performance in jewelry resin model printing. The actual printing effect will be affected by the model structure, resin type, support settings, layer thickness, exposure parameters and post-processing process.
It can also accurately present prongs with wall thicknesses as thin as 0.3mm and as thin as needle tips.
Products used: GEM3 Max / Precision Cast Resin Application status: resin model / pre-casting model / metal finished product
Jewelry industry application cases

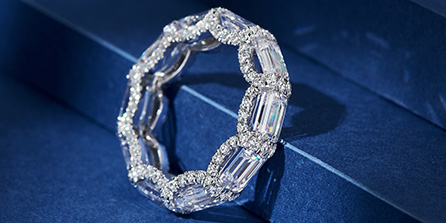

Lukfook Jewelry
Products used:GEM3 Max / Precision Cast Resin Case description:Used for jewelry design verification and resin model printing to help demonstrate micro-setting structures, filigree textures and complex details, and provide a physical sample reference for subsequent process evaluation.
Chow Tai Sang Jewelry
Products used:GEM3 Max / filigree casting resin Case description:Used for printing complex filigree and hollow structures, helping to accurately present thin textures and difficult geometries, and providing a reliable sample reference for ancient gold and filigree jewelry.

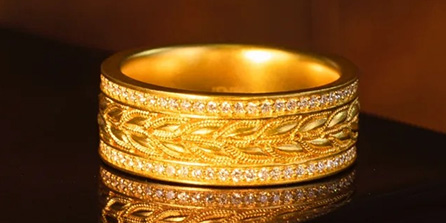

Chow Tai Fook Jewelry
Products used:GEM3 Max / High wax thick casting resin Case description:It is used for printing heavy-weight jewelry and thick-walled models, helping to simulate the sintering effect of traditional wax patterns, reducing the risk of swelling and cracking in thick castings and improving the yield rate.
Frequently Asked Questions about Jewelry Casting 3D Printing Applications
Q: What is jewelry casting 3D printing?
A: Jewelry casting 3D printing uses photopolymerization technology to produce jewelry resin models. Combined with cleaning, post-curing, burnout and lost-wax casting, it converts digital designs into physical models for process evaluation or subsequent casting. Actual casting results depend on the resin, post-processing, burnout schedule, investment material and casting conditions.
Q: Which jewelry models are suitable for photopolymer 3D printing?
A: It is suitable for rings, pendants, earrings, bracelets, filigree jewelry, micro-pavé pieces, hollow structures, thick relief parts and personalized jewelry models—especially when details, structure and proportions need to be evaluated.
Q: Are NOVA3D jewelry casting resins suitable for lost-wax casting?
A: NOVA3D offers resins for jewelry lost-wax casting, including Precision Cast Resin, filigree casting resin and High wax thick casting resin. Each resin suits different structures and workflows. Sample testing is recommended using the intended cleaning, post-curing, burnout schedule and foundry conditions.
Q: What advantages does jewelry 3D printing offer over traditional wax making?
A: Jewelry 3D printing quickly converts CAD designs into resin models for design validation, structural review and pre-casting evaluation. It offers greater flexibility for complex structures, design iterations and small-batch model production.
Q: How do I choose suitable 3D printing equipment and resin for jewelry applications?
A: Equipment selection should consider model size, detail requirements, build-platform capacity and production workflow. Resin selection should reflect the intended application, such as micro-pavé, filigree, thick parts or lost-wax casting. NOVA3D can recommend equipment, materials and process settings for your application.
Q: Does NOVA3D support jewelry batch production?
A: NOVA3D photopolymer 3D printers can support jewelry prototyping, small-batch model production and mixed-model layouts on one platform. Batch-production planning should consider printer capacity, model layout, resin selection, cleaning and curing capacity, casting workflow and quality-control requirements.
Q: Does NOVA3D provide jewelry printing process support?
A: NOVA3D can provide printer selection, resin selection, print-parameter recommendations, post-processing guidance, reference burnout schedules and application consultation to help customers establish a suitable jewelry resin-model workflow.
Q: How can I get started with NOVA3D jewelry casting 3D printing?
A: Contact a NOVA3D jewelry application specialist with your product type, model dimensions, target process, production volume and existing equipment. The team can recommend printers, jewelry resins and workflows, and help arrange sample testing or technical consultation.
Find your NOVA3D application workflow
Based on your application scenario, model type, material needs and production or creation process, the NOVA3D team can help you evaluate suitable printing equipment, resin materials, software tools and post-processing solutions.
GEM3
GEM3 MAX
GEM3 MAX
Whale4 Ultra
Fastcure 3
Fastcure 2

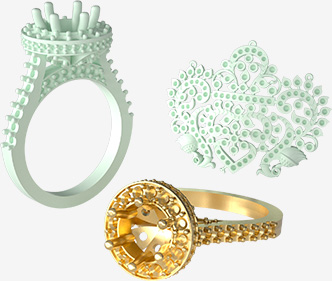

Precision Cast Resin
