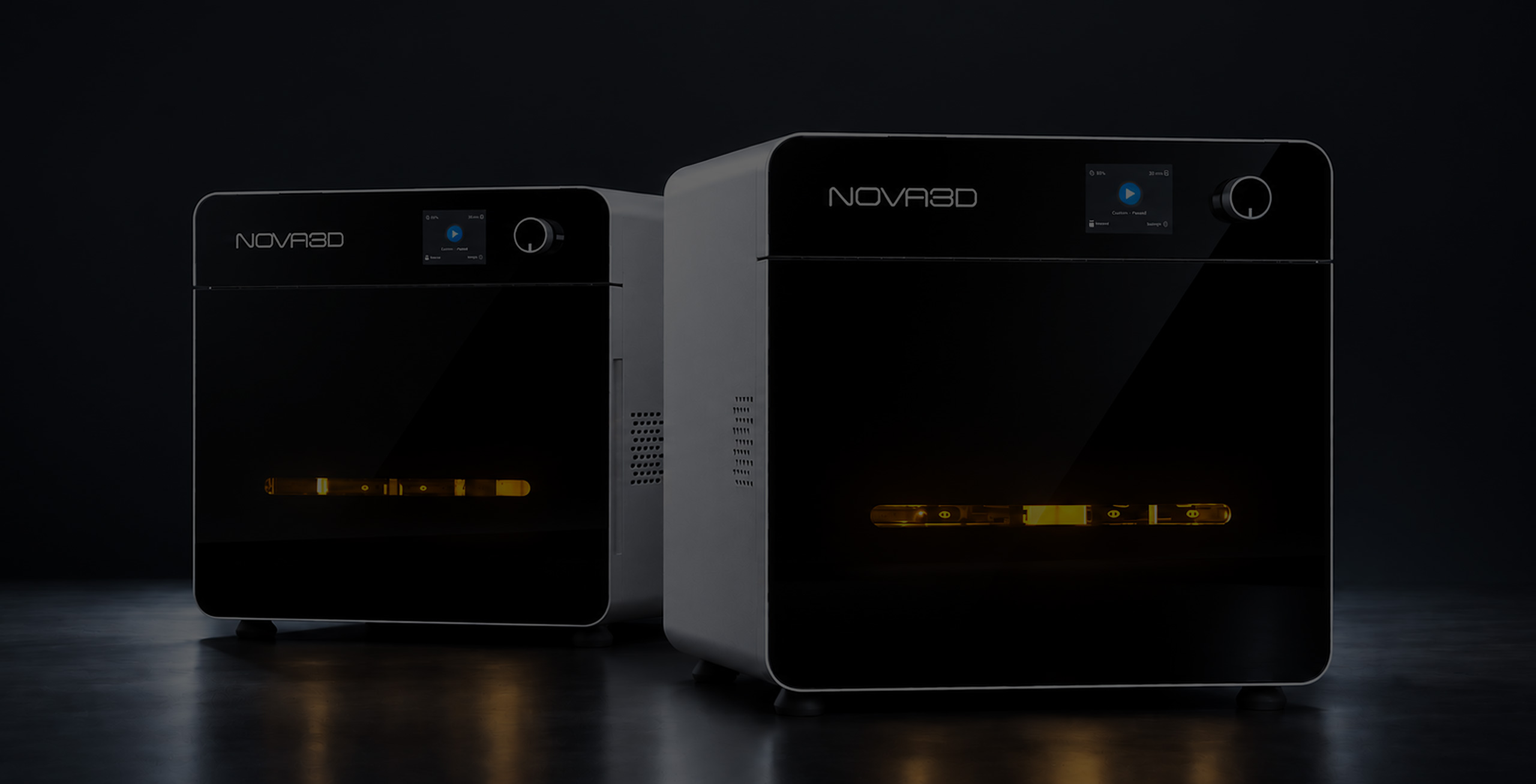

FastCure 3 and FastCure 3 Pro UV post-curing systems

FastCure 3 UV Post-Curing Station

A professional UV post-curing system for resin 3D printing. Stable UV exposure completes secondary curing for jewelry, dental, figure and model applications, helping professional users build a more complete resin post-processing workflow.

Request a FastCure 3 QuoteView SpecificationsGet Product Information

Professional UV Post-Curing for Resin 3D Printing

NOVA3D FastCure 3 is designed for the secondary UV curing stage of resin 3D printing. After a printed part has been washed and thoroughly dried, FastCure 3 helps complete post-processing. It supports jewelry, dental, figure and model applications and works alongside NOVA3D printers and resins in a complete resin 3D printing workflow.

Multi-Angle Exposure for Even Curing

With a 405 nm UV source, adjustable intensity, multi-angle exposure, a 360° rotating platform and a mirrored chamber,
FastCure 3 supports even and flexible post-curing for jewelry, dental and detailed models.

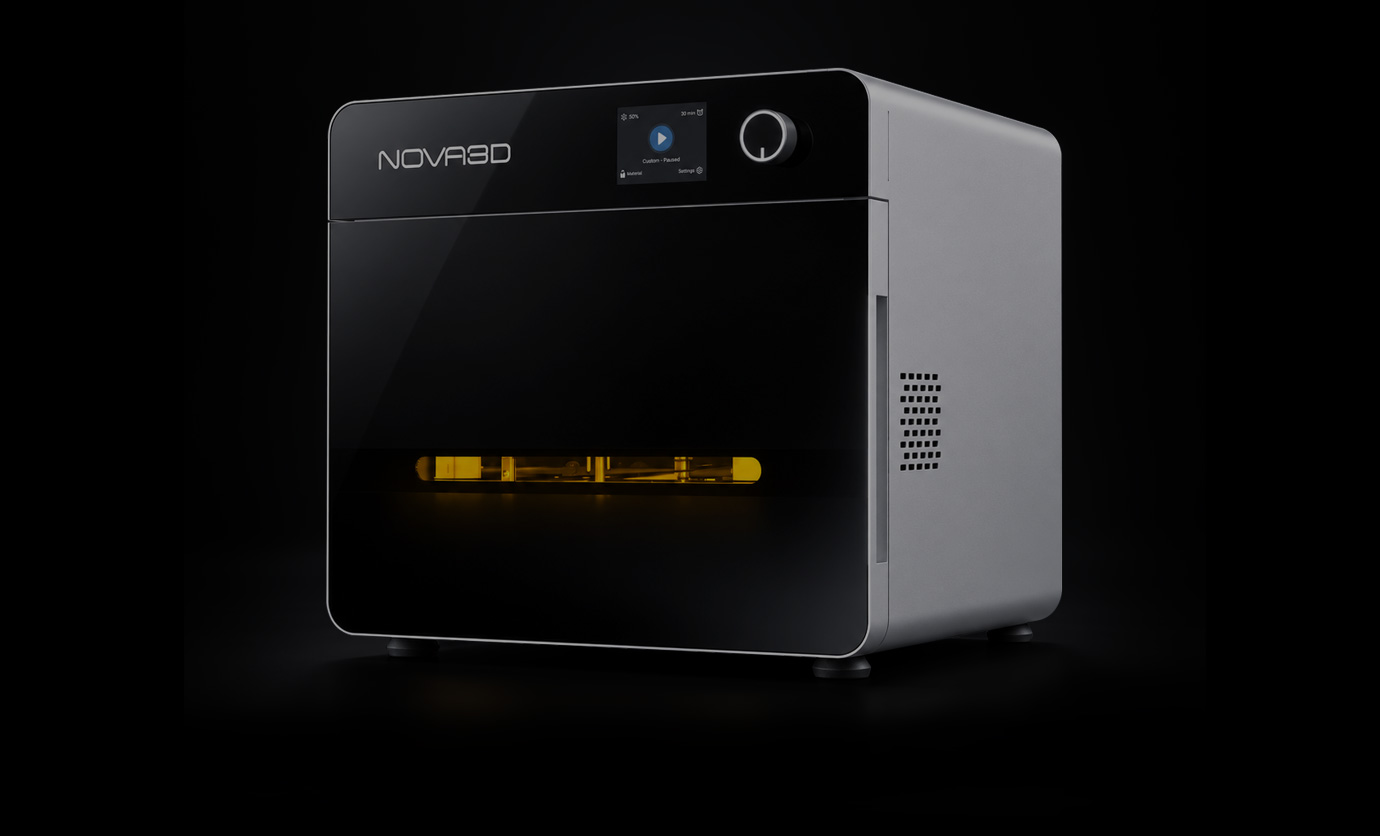

FastCure 3 product view

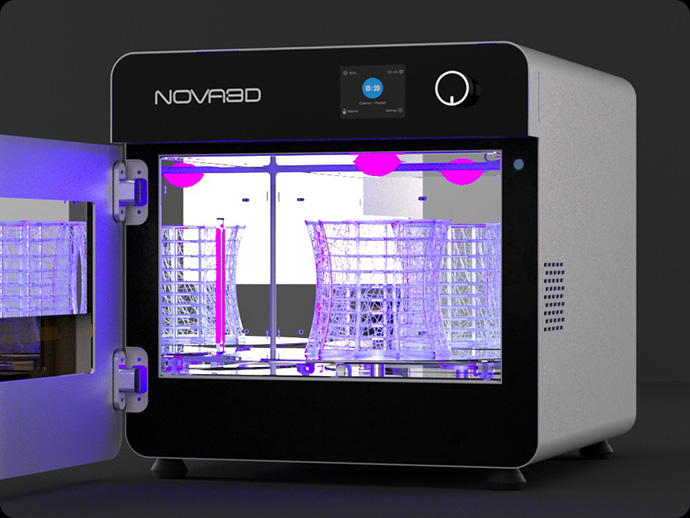

Multi-directional UV exposure for complex structures

Multi-Directional UV Coverage
Even Curing of Complex Structures

A top COB source combines with high-power LEDs, a 360° rotating platform and six mirrored inner surfaces. UV light reaches the model from multiple directions, reducing shadows around filigree, hollow areas and fine details for more even post-curing.

Note: Opening the chamber door during operation automatically turns off the UV light.

  • COB + LED multi-directional light
  • 360° rotation + six mirrored surfaces

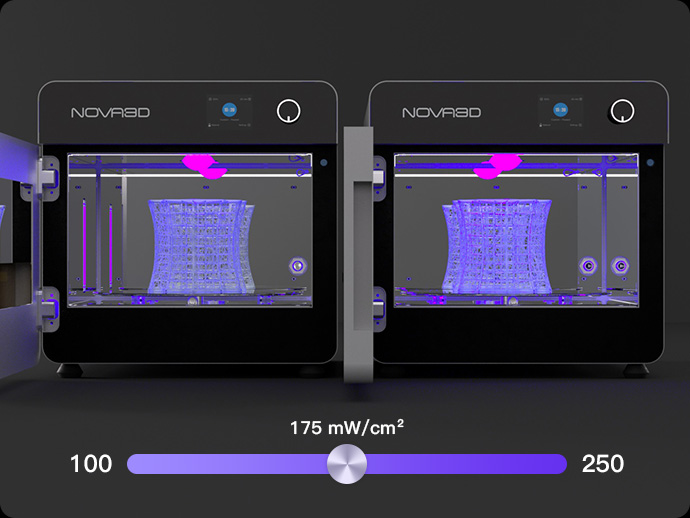

100–250 mW/cm² adjustable UV output

100–250 mW/cm²
Adjustable to Your Curing Needs

The 405 nm UV source supports adjustable intensity from 100 to 250 mW/cm². Set the energy output for the resin, model geometry and post-curing requirements to balance curing efficiency with material compatibility.

  • 405 nm UV wavelength
  • 100–250 mW/cm² adjustable intensity

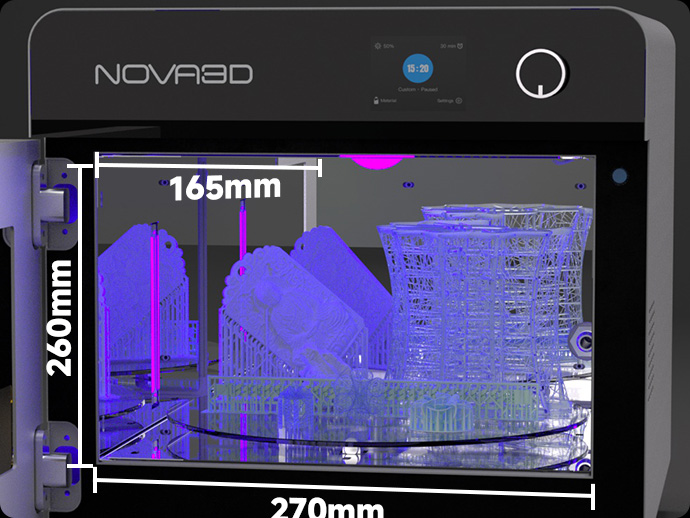

Larger curing space for multiple models

Larger Curing Chamber
Process Multiple Models at Once

The 270 × 260 × 165 mm chamber and 250 mm rotating platform can hold multiple jewelry parts, dental models or figure components for everyday prototyping, multi-part jobs and small batches.

  • 250 mm rotating platform
  • Stable rotation at 3 rpm

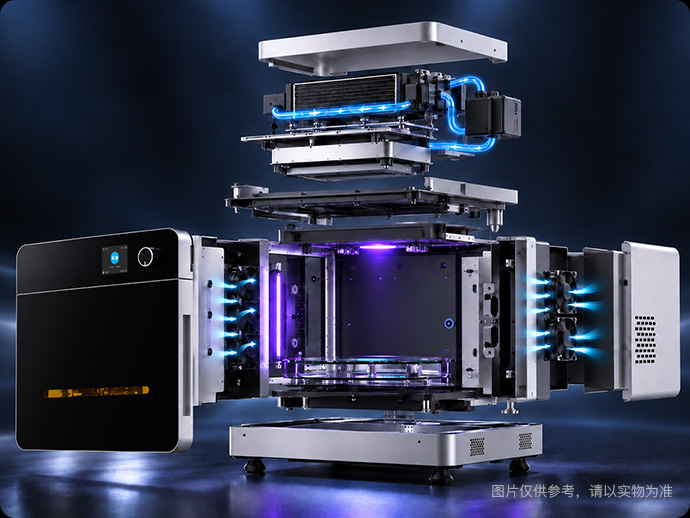

Water and air cooling for stable light output

Water + Air Cooling
Stable Light Output

Water cooling serves the top COB source, while air cooling serves the side LEDs. Together, they lower operating temperatures and help reduce light-intensity fluctuations during extended UV-curing sessions.

  • Water-cooled COB
  • Air-cooled side LEDs

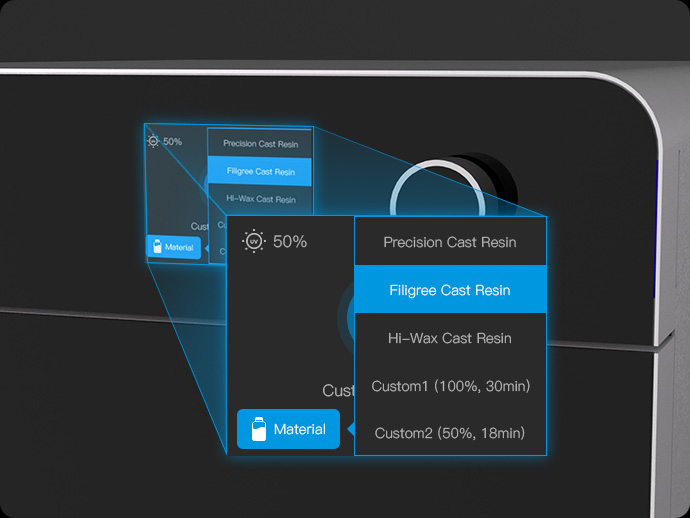

Preset curing programs and simple operation

Preset Curing Parameters
Simple, Confident Operation

FastCure 3 includes presets for different resins. Select a material program and start curing quickly. A rotary encoder and clear interface simplify daily operation, while smart door protection and a UV-shielded viewing window make the process more convenient and safer.

  • Resin curing presets
  • Smart door protection + UV-shielded window

Professional Application

Jewelry Casting & Craft Applications

UV secondary-curing support for micro-setting, filigree and openwork resin jewelry models, ready for casting and subsequent craft processes.

Recommended Products:

FastCure 3GEM3 MAXJewelry Resins

Suitable For:

Jewelry design studios, independent designers, micro-setting studios, jewelry manufacturers, casting centers, brands and education providers

View Application
Jewelry casting application sample

Professional Application

Digital Dental Applications

UV post-curing for dental resin models, with intensity and time selected according to material requirements.

Recommended Products:

FastCure 3GEM3 MAXDental Resins

Suitable For:

Dental model labs, digital studios and material application teams

View Application
Digital dental application sample

FastCure 3 Post-Cured Sample Gallery

Explore FastCure 3 post-curing applications in jewelry, dental, figure and consumer-electronics models. A 405 nm UV source, multi-angle exposure and rotation support even curing across different sizes and complex structures.

Recommended Downloads

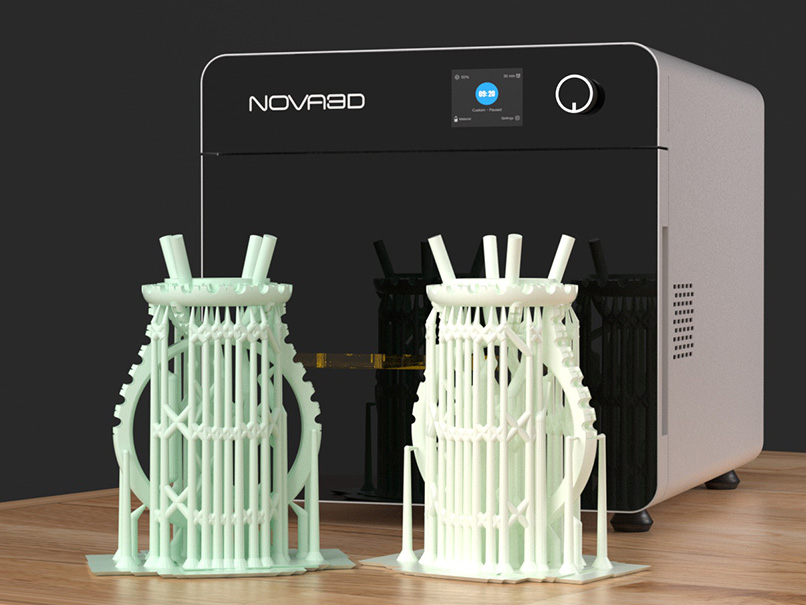

Jewelry resin model with FastCure 3

Application: jewelry casting modelProducts: GEM3 Max · FastCure 3Note: follow the resin manufacturer's post-curing requirements

Learn More

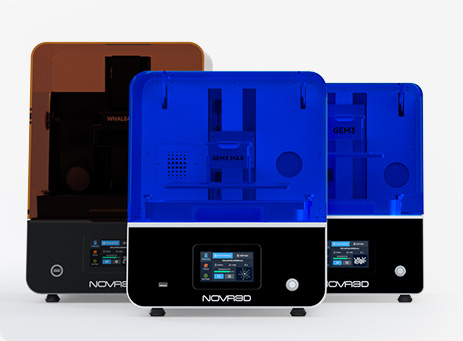

The NOVA3D Digital 3D Printing Ecosystem

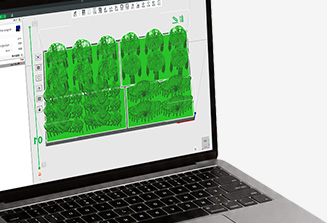

From printers and professional resins to UV post-curing, slicing software and digital management, NOVA3D supports the key stages of resin 3D printing.

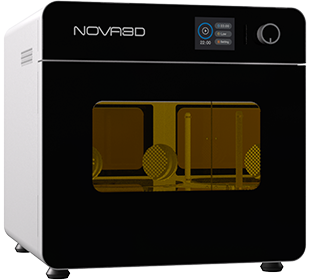

FastCure 3 or FastCure 3 Pro: Which Is Right for You?

FastCure 3 focuses on efficient UV curing. FastCure 3 Pro adds assisted heating and drying for post-processing higher-performance materials.

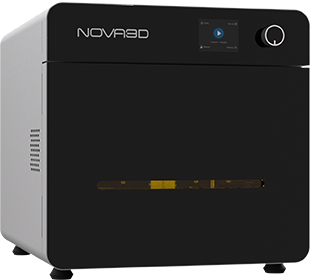

FastCure 3 and FastCure 3 Pro Specifications
Model
FastCure 3

FastCure 3

Buy Now

Currently Viewing
FastCure 3 Pro
Curing Chamber270 × 260 × 165 mm270 × 260 × 165 mm
Platform Diameter250 mm250 mm
Platform Speed3 rpm 3 rpm
LED Wavelength405 nm385nm / 405nm
Number of LEDs8 side LEDs + 1 top COB (6 × 8 LEDs)24 LEDs
UV Intensity100–250 mW/cm² (adjustable)100–300 mW/cm² (adjustable)
Maximum Heating Temperature/40–85°C
Maximum Power200 W500 W
Power SupplyIntegrated industrial power supplyIntegrated industrial power supply
Machine Dimensions330 × 382.8 × 329mm330 × 349 × 329mm
Package Dimensions429 × 482 × 482mm442 × 423 × 462mm
Net WeightApprox. 13.5 kgApprox. 13.5 kg
Gross WeightApprox. 15.5 kgApprox. 15.5 kg
Product Downloads

FastCure 3 FAQ

Q: What is FastCure 3 used for?

A: FastCure 3 is a UV post-curing system for LCD, DLP and SLA resin prints. After printing, washing and thorough drying, it provides secondary UV curing as part of the resin post-processing workflow.

Q: Which models and applications is FastCure 3 suitable for?

A: It can post-cure jewelry casting patterns, dental models, figures, industrial prototypes and other resin prints. Choose a curing program according to the resin manufacturer's requirements.

Q: How does FastCure 3 expose complex models evenly?

A: A top COB source, side LEDs, multi-angle exposure, a 360° rotating platform and mirrored inner surfaces deliver UV from several directions, helping reduce shadows in filigree, hollow and complex structures.

Q: Is the UV intensity adjustable?

A: Yes. The 405 nm UV source supports PWM intensity control from 100 to 250 mW/cm², so UV output can be adjusted for different resins and curing needs.

Q: Are resin presets and one-touch curing supported?

A: Yes. Built-in resin presets let users select a material program and start curing with one action, reducing repeated setup during daily post-processing.

Q: Can FastCure 3 cure multiple models at once?

A: Yes. The 270 × 260 × 165 mm chamber and 250 mm platform can hold several jewelry parts, dental models or figure components, depending on their size and arrangement.

Q: Does FastCure 3 heat or dry models?

A: No. FastCure 3 is a dedicated UV post-curing system without heating or drying. Wash and dry models thoroughly before curing. For engineering resins that require heat-assisted post-curing, consider a suitable system such as FastCure 3 Pro.

Q: How should I choose between FastCure 3 and FastCure 3 Pro?

A: FastCure 3 is suited to professional UV post-curing of jewelry, dental, figure and general resin models. FastCure 3 Pro adds heat assistance for engineering resins and high-performance materials that require temperature support.

Choose the Right Curing Solution for Your Material

Tell us your resin, model application and production needs for a product recommendation and quote.
